n8n Queue Mode + Redis in Practice: When to Offload Workflows to a Queue

What This Guide Covers

• Solves the frontend unresponsiveness issue caused by high-concurrency Webhook callbacks and slow AI node executions blocking the main thread during single-node n8n deployments.
• Resolves the shared storage pain point where local temporary files generated at different execution stages frequently trigger FileNotFound errors due to physical isolation in multi-container environments.
• Provides three production-grade distributed topology architectures ranging from small-scale to Webhook peak periods, along with specific configurations for concurrency control and API rate limiting.

Who This Guide Is For

• Independent developers who have deployed self-hosted n8n via Docker but frequently encounter mysterious background OOM crashes as their business scales.
• Backend and DevOps engineers designing enterprise-grade AI automation workflow clusters that require queue management and concurrency control for tasks.
• Geeks passionate about leveraging low-code platforms and large language models to improve business efficiency, aiming to build an indestructible underlying computing engine for their personal IP.

Scope of Evidence

This article first outlines the engineering roadmap involving Queue Mode, Redis, Worker, Postgres, and Webhook separation. Actual execution counts, queue wait times, Worker failure rates, and cost data will be supplemented later after exporting data from n8n executions, Redis queue monitoring, and server logs; no operational data is fabricated at this stage.

1. Why Does Single-Node n8n Slow Down?

The single-process architecture is the fatal flaw of single-node n8n when facing concurrency and time-consuming tasks. As a beginner full-stack developer, I initially thought single-container deployment (Regular Mode) was perfect when I started experimenting with AI workflows. I could spin up a service on my local Mac mini in minutes, running various lightweight automation tasks—such as scheduled web scraping, GitHub commit synchronization, and email notifications—smoothly.

However, once you increase the complexity of your workflows by adding numerous external APIs and large model computations, the system begins to show severe signs of fatigue:

First, Webhook requests increase. When you mount various service callbacks on the public internet, a sudden surge in traffic can cause dozens of Webhooks to hit simultaneously. In the default single-process mode, n8n must parse these network requests and initialize a workflow execution instance for each one. Node.js’s extremely thin single-threaded event loop gets instantly flooded with these micro-tasks.

Second, AI node call times lengthen. Large model API responses are never measured in milliseconds. An AI node involving multi-step reasoning, prompt optimization, and long-text summarization may take thirty seconds to several minutes to execute. If five such tasks run concurrently, the main thread of single-node n8n falls into prolonged synchronous waiting, unable to handle other lightweight workflows.

Third, external APIs (such as Google Sheets, Gmail, Slack) begin to slow down and trigger rate limits. Without unified queue queuing and concurrency control, all execution tasks grow wildly, often getting banned or forcibly rejected by external APIs due to bursts of concurrent HTTP requests.

Fourth, long tasks block short tasks. For example, if a batch file processing task requiring ten minutes runs in the background, and a Webhook needing a response within one second arrives, it must wait idly in the event queue until the main thread is free. This directly leads to Webhook reception timeouts, triggering retries from the external sender.

Fifth, failure retries cause task accumulation. Without a queue mechanism, if widespread LLM calls trigger workflow retries due to timeouts, these retry tasks mix with newly incoming tasks, completely exhausting the already overloaded Node.js heap memory (V8’s default limit is approximately 1.4GB), causing the entire container to crash and restart.

n8n isn’t incapable of running; rather, when receiving and executing tasks are compressed into a single instance, they inevitably interfere with each other. We need to physically separate front-end reception from back-end processing.

2. What Problem Does Queue Mode Solve?

Queue mode upgrades n8n’s system architecture from a single process to a distributed microservice by introducing a message broker.

In Regular Mode (the default mode), the entire n8n container operates as a monolithic unit. A single instance is responsible for receiving Webhooks, rendering the low-code UI, scheduling task nodes, and executing specific script code. If any single component fails due to CPU saturation or a memory leak, all system functionality will immediately collapse.

In Queue Mode, the main node is decoupled into a read-only, lightweight service, while actual execution tasks are delegated to underlying Workers.

The specific division of labor is structured as follows:

• Main Instance: Acts as the sole control center for the system. It is only responsible for displaying the frontend canvas, saving workflow definitions, and receiving external Webhooks. Upon receiving a task, it does not execute it directly; instead, it packages the task parameters and sends them to Redis.
• Redis Component: Serves as an in-memory message broker. It maintains the queue of pending tasks and handles message distribution and state synchronization between the Main instance and the various Workers.
• Worker Instances: Dedicated background computing processes. They do not expose any external HTTP ports. Instead, they continuously listen to the Redis queue via TCP, pulling tasks for local computation.
• Database (PostgreSQL): Stores the system’s core persistent data, such as user credentials, workflow metadata, and final execution history.

Through this architecture, system throughput is no longer limited by the event loop of a single Node.js process. The Main node can ingest tens of thousands of concurrent Webhooks in milliseconds, while specific computational tasks are queued in Redis and processed gradually by the Workers below. Even if a Worker restarts due to an Out-Of-Memory (OOM) error caused by processing large text files, the Main node’s frontend console remains smooth and unaffected.

3. When Do You Need Queue Mode?

Introducing Queue Mode represents an architectural upgrade that incurs additional deployment costs and server resource overhead. Therefore, we need a clear set of physical metrics to determine when to upgrade:

First, when you notice frequent 504 Gateway Timeout or 499 Client Disconnected errors from external Webhook requests. This indicates that the main process is too busy handling already-triggered workflows to manage new HTTP connection handshakes. Receiving and executing must be decoupled.

Second, when AI calls or slow-computation nodes in your workflows frequently take more than thirty seconds, or even several minutes, to execute. In Regular Mode, these slow tasks poison the event loop. Under concurrency, they cause noticeable queuing delays for short, fast automation tasks.

Third, when the daily volume of concurrent workflows increases significantly, and the number of daily execution records (Executions) exceeds ten thousand.

Fourth, when task failure retries cause severe avalanche-like accumulation. For example, network fluctuations might suddenly cause hundreds of LLM calls to fail, automatically triggering retries after three minutes. If these retry tasks are pushed back into a single-threaded main process at the same time, they will instantly cause a second system deadlock.

Finally, when you want to linearly scale the system’s execution capacity by adding servers or Worker processes, or when you need precise control over the concurrency limits for each workflow node. This level of physical guarantee is impossible with standard single-process mode.

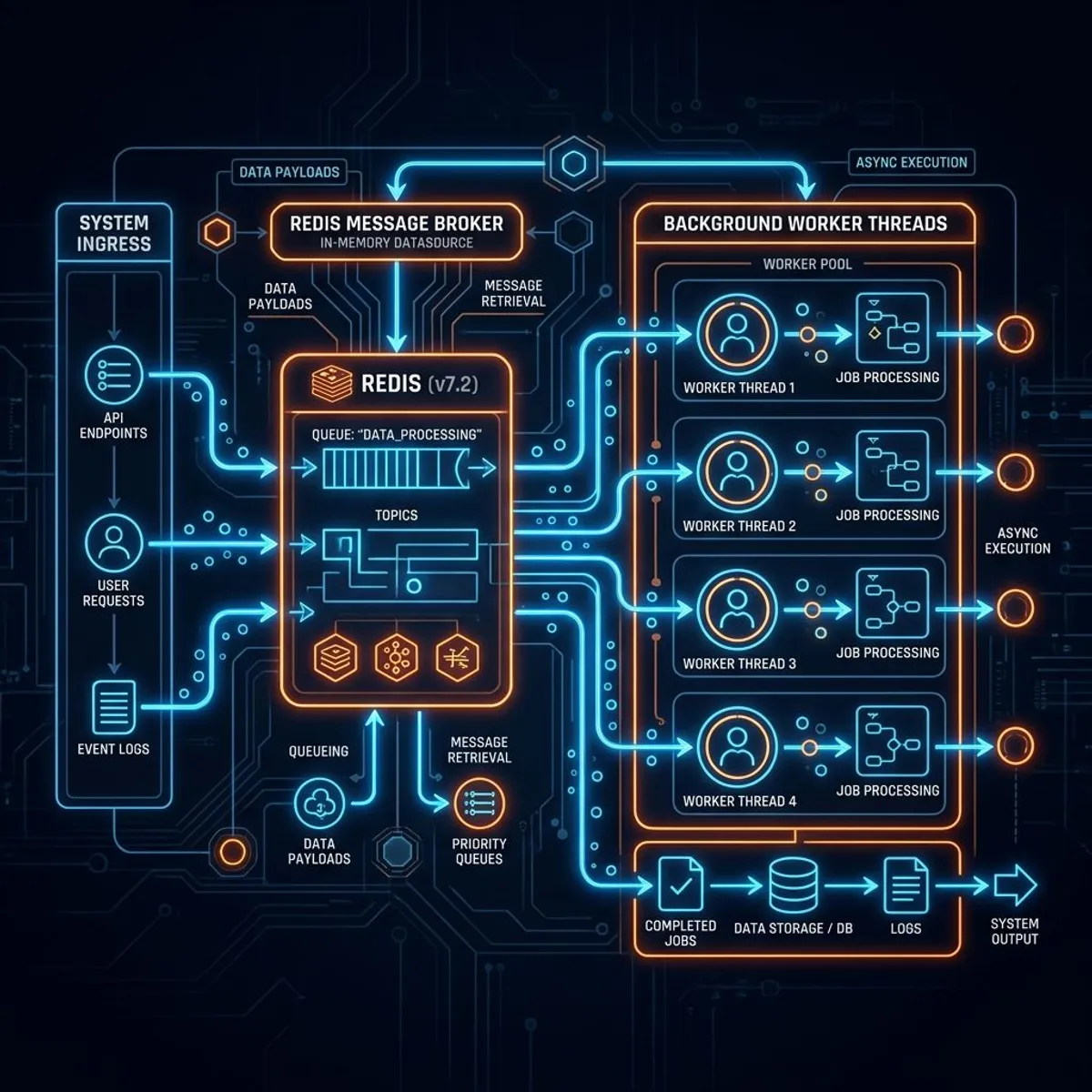

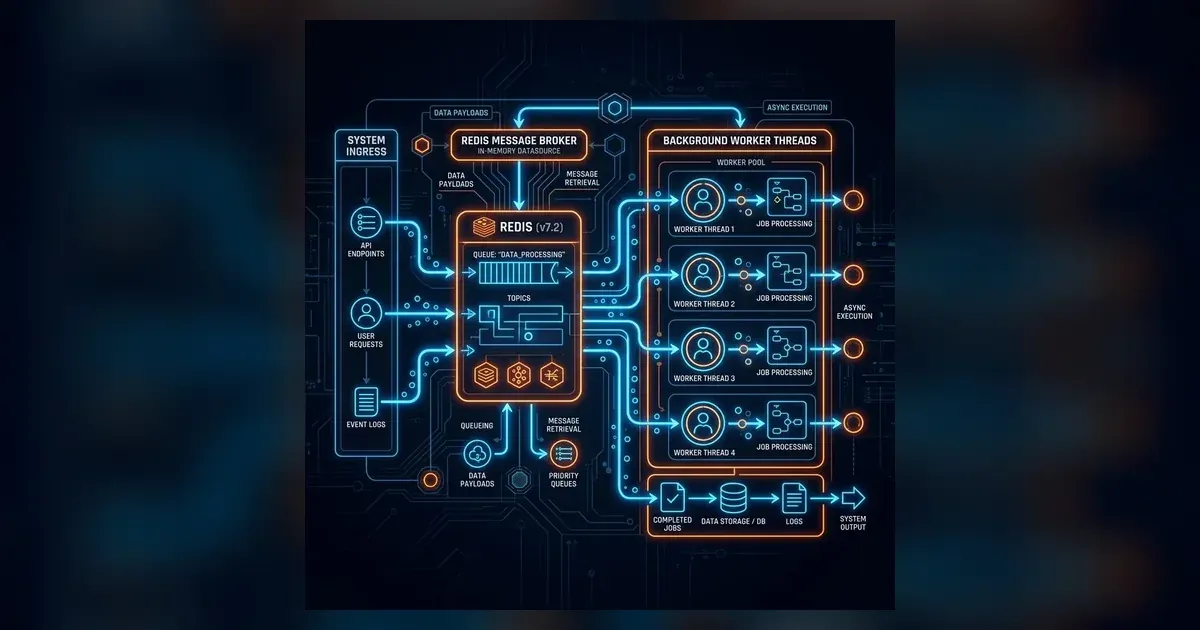

4. What Does Redis Do in n8n Queue Mode?

Many people confuse the role of Redis with that of PostgreSQL when first encountering n8n’s Queue Mode.

We must keep a fundamental principle in mind: Redis does not store your business data; rather, it helps n8n coordinate pending tasks and workers.

In its operational flow, Redis acts as a data conveyor belt:

1. When the Main instance detects a trigger (such as a scheduled Cron or an incoming Webhook), it generates a Job representing that execution run and pushes it into the Bull queue in Redis.
2. Multiple Worker instances listening to Redis compete for these Jobs using a consumer competition pattern. A single idle Worker picks up the Job from the queue and executes it within its own container process.
3. During execution, the Worker frequently syncs the state of the current node, intermediate variables, and output results with the Main instance via Redis. This allows us to see the green “Execution Successful” path in real time on the frontend console.
4. All workflow configurations, historical credentials, and completed execution records (Succeeded/Failed) that require long-term storage are ultimately written to PostgreSQL or MySQL relational databases. Queue data in Redis is automatically cleaned up after task completion, maintaining extremely high throughput.

Therefore, if Redis goes down unexpectedly, the n8n web interface can still be accessed normally by reading from PostgreSQL, and historical data will not be lost. However, all workflow dispatching and background execution will immediately stall.

5. How Should Workers Be Scaled?

Depending on team size and business traffic, workers should adopt different distributed scaling topologies:

1. Small-Scale Mode (Ideal for Individuals and Very Small Teams)

Topology: 1 main + 1 Redis + 1 worker + 1 database

Run this on a single high-performance VPS or NAS. The Main node, Worker node, Redis, and Postgres operate within the same Docker virtual network. This provides memory-level isolation, preventing execution crashes from affecting the frontend web interface.

2. Medium-Scale Mode (Suitable for Businesses with Stable Traffic)

Topology: 1 main + 1 Redis + 2-3 workers + 1 database

Scale out the Worker instances horizontally. For example, launch three identical Worker containers in docker-compose, or deploy these three Workers across different physical servers. They connect via internal TCP to cloud-hosted Postgres and Redis. This provides excellent fault redundancy; if any single Worker goes down, the remaining Workers automatically take over the remaining tasks in the queue.

3. Webhook Peak Mode (Enterprise-Grade High-Concurrency Architecture)

Topology: webhook instance + main instance + Redis + multiple workers + database

In scenarios with ultra-high concurrency Webhook callbacks, n8n allows you to further split the Main instance into a dedicated instance for receiving Webhooks (Webhook Instance) and a separate Main instance for providing the console UI. The Webhook instance only handles minimal security verification and queue insertion, completely avoiding management logic. Paired with multiple Workers, this architecture can withstand bursts of thousands of requests per second.

Below is a complete docker-compose.yml deployment example suitable for the medium-scale mode, clearly demonstrating the decoupled orchestration of Main, Worker, Redis, and Postgres:

version: '3.8'

services:
  n8n-postgres:
    image: postgres:16-alpine
    container_name: n8n-postgres
    environment:
      - POSTGRES_USER=n8n_db_user
      - POSTGRES_PASSWORD=n8n_secure_pass_998
      - POSTGRES_DB=n8n_production
    volumes:
      - pg_data_volume:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U n8n_db_user -d n8n_production"]
      interval: 5s
      timeout: 5s
      retries: 5
    restart: always

  n8n-redis:
    image: redis:7.2-alpine
    container_name: n8n-redis
    command: redis-server --appendonly yes
    volumes:
      - redis_data_volume:/data
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 5s
      timeout: 5s
      retries: 5
    restart: always

  n8n-main:
    image: docker.n8n.io/n8nio/n8n:latest
    container_name: n8n-main
    depends_on:
      n8n-postgres:
        condition: service_healthy
      n8n-redis:
        condition: service_healthy
    ports:
      - "5678:5678"
    environment:
      - N8N_HOST=localhost
      - N8N_PORT=5678
      - N8N_PROTOCOL=http
      - DB_TYPE=postgresdb
      - DB_POSTGRESDB_HOST=n8n-postgres
      - DB_POSTGRESDB_PORT=5432
      - DB_POSTGRESDB_DATABASE=n8n_production
      - DB_POSTGRESDB_USER=n8n_db_user
      - DB_POSTGRESDB_PASSWORD=n8n_secure_pass_998
      - EXECUTIONS_MODE=queue
      - QUEUE_BULL_REDIS_HOST=n8n-redis
      - QUEUE_BULL_REDIS_PORT=6379
      - N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS=true
    volumes:
      - shared_files_volume:/home/node/.n8n
    restart: always

  n8n-worker-1:
    image: docker.n8n.io/n8nio/n8n:latest
    container_name: n8n-worker-1
    depends_on:
      n8n-postgres:
        condition: service_healthy
      n8n-redis:
        condition: service_healthy
    command: worker --concurrency=5
    environment:
      - DB_TYPE=postgresdb
      - DB_POSTGRESDB_HOST=n8n-postgres
      - DB_POSTGRESDB_PORT=5432
      - DB_POSTGRESDB_DATABASE=n8n_production
      - DB_POSTGRESDB_USER=n8n_db_user
      - DB_POSTGRESDB_PASSWORD=n8n_secure_pass_998
      - EXECUTIONS_MODE=queue
      - QUEUE_BULL_REDIS_HOST=n8n-redis
      - QUEUE_BULL_REDIS_PORT=6379
      - N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS=true
    volumes:
      - shared_files_volume:/home/node/.n8n
    restart: always

  n8n-worker-2:
    image: docker.n8n.io/n8nio/n8n:latest
    container_name: n8n-worker-2
    depends_on:
      n8n-postgres:
        condition: service_healthy
      n8n-redis:
        condition: service_healthy
    command: worker --concurrency=5
    environment:
      - DB_TYPE=postgresdb
      - DB_POSTGRESDB_HOST=n8n-postgres
      - DB_POSTGRESDB_PORT=5432
      - DB_POSTGRESDB_DATABASE=n8n_production
      - DB_POSTGRESDB_USER=n8n_db_user
      - DB_POSTGRESDB_PASSWORD=n8n_secure_pass_998
      - EXECUTIONS_MODE=queue
      - QUEUE_BULL_REDIS_HOST=n8n-redis
      - QUEUE_BULL_REDIS_PORT=6379
      - N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS=true
    volumes:
      - shared_files_volume:/home/node/.n8n
    restart: always

volumes:
  pg_data_volume:
  redis_data_volume:
  shared_files_volume:

6. How to Control Concurrency?

The queue mode gives us precise control over concurrency, but many developers fall into the trap of blindly scaling up “the more workers, the better” after switching.

In Queue Mode, we primarily control the number of jobs each worker can run in parallel by passing the --concurrency parameter in the worker startup command (e.g., command: worker --concurrency=5 in the configuration above). If not specified, the default is usually 10.

This means two workers will consume at most 10 queue tasks in parallel. If a new 11 task arrives, it will quietly wait in the Redis queue until an idle worker frees up a slot. This concurrency-limiting mechanism is fundamentally different from Regular Mode’s brute-force reliance on physical memory limits; it is physically controllable.

To prevent the queue system from becoming a source of cascading pressure on downstream infrastructure, we must follow these principles of restraint when designing concurrency:

First, do not infinitely increase the number of worker containers. Adding workers means they will establish more physical TCP connections with the PostgreSQL database and Redis. If the database’s max_connections limit is too low, or if Redis itself hasn’t been optimized for persistence, worker nodes will frequently disconnect and throw errors.

Second, do not infinitely increase the concurrency level. While increasing concurrency can shorten the queuing time for lightweight tasks, if your workflow involves complex AI computations, high concurrency can cause your LLM token costs to spiral out of control instantly. Furthermore, an instantaneous surge in requests may directly trigger API rate limits from providers like OpenAI or Anthropic, leading to widespread task retries and failures.

We need to scientifically calculate a conservative, safe concurrency value based on the server’s CPU cores, available physical memory, the connection limits of downstream databases, and the rate limits of external AI service providers.

7. Why Are AI Workflows Better Suited for Queues?

Compared to traditional lightweight API integrations, the characteristics of AI automation workflows make them natural partners for task queues.

There are several key reasons for this:

First, LLM call latency is highly unstable. For the same prompt, response times can stretch from two seconds to a minute when the model provider’s servers are congested. If this high degree of uncertainty occurs concurrently in a single-machine n8n setup, it can easily block the main thread’s event loop.

Second, external model APIs have strict rate limits. Without a queue buffer, if your workflow needs to batch-process 500 customer feedback entries, n8n would send 500 requests to the model interface within seconds, instantly triggering Rate Limit errors. By using a queue and setting appropriate concurrency, you can ensure tasks are sent at a steady pace like an assembly line, avoiding API errors.

Third, long-text processing is prone to timeouts. Tasks such as automatically extracting audio/video content and using large models for full-text translation and summarization are extremely long-running. If multiple such tasks run concurrently, the CPU and memory usage on a single server will hit the ceiling instantly.

Additionally, the token consumption cost of running multiple AI workflows simultaneously is staggering. Without a queue-based throttling mechanism, a surge in concurrent execution could drain your credit card limit through massive, invalid retries in just a few minutes.

AI workflows aren’t always slow, but their unpredictability is higher, making queues and concurrency control even more essential.

8. When Do Individual Developers Not Need Queue Mode?

Before diving into queue mode, novice developers should first take a step back and assess whether they are over-engineering the solution.

If you fit any of the following profiles, drop the idea of Queue Mode immediately:

First, your daily execution volume is only in the dozens or hundreds. Even if occasional queuing occurs, it won’t impact your business.

Second, your workflows rarely handle high-concurrency Webhook requests from unknown external users. They primarily rely on scheduled Cron triggers or manual execution clicks within your backend.

Third, your server resources are extremely limited. Your VPS has only 1 CPU cores and 1GB memory. Forcing Postgres, Redis, the Main container, and the Worker container into this configuration will cause the system to crash frequently due to physical memory exhaustion.

Fourth, your workflow isn’t exposed to real users. It serves merely as a personal assistant for daily efficiency gains, scraping personal data, or managing dashboards. If timeouts occasionally occur due to network issues, manual retries are perfectly acceptable.

Queue Mode is an extension strategy, not a starting point. In the early stages of your business, mastering Regular mode and focusing your limited energy on designing excellent workflow logic is the most cost-effective product iteration path.

9. Common Mistakes

Common Mistake 1: Implementing Queue Mode Before You Have Traffic

Many developers start building highly available Redis queues and multi-Worker clusters even when their project has zero real users. This not only wastes physical server compute power but also drastically increases future upgrade and troubleshooting costs. When a workflow fails, you’ll find yourself jumping back and forth between logs in the Main container, Redis container, multiple Worker containers, and the database, resulting in extremely low troubleshooting efficiency.

Common Mistake 2: Using Redis as a Database

In Queue Mode, Redis serves solely as temporary storage for the Bull message engine. Some developers attempt to use Redis volume persistence to replace PostgreSQL for storing workflow definitions or credentials. Be clear: queue data in Redis is automatically cleared after consumption. It can never replace Postgres or MySQL for saving any core asset data.

Common Mistake 3: Spawning Too Many Workers

Blindly launching too many Worker containers will exhaust the main server’s physical memory and easily shift all read/write pressure onto the backend PostgreSQL database, causing the connection pool to become saturated. Additionally, this can instantly overwhelm external Large Language Model (LLM) API endpoints, triggering difficult-to-trace API rate-limiting errors.

Common Mistake 4: Failing to Control AI Node Costs

While introducing Queue Mode significantly boosts the system’s concurrent execution capabilities, it also means that in the event of infinite-loop workflows or mass retries, the system can consume your AI account balance at an alarming speed. Running nodes that call advanced models concurrently without limits will generate exorbitant token bills in a short period.

Common Mistake 5: Blurring Responsibilities Between Webhooks, Workers, and Main

In a Queue deployment environment, mapping external public ports like 5678 directly to Worker instances, or allowing the Main node to participate in background workflow computation, leads to confused responsibilities among containers. This prevents the traffic isolation benefits that Queue Mode is designed to provide.

10. Pre-Launch Checklist

• Have execution backlogs or timeouts actually occurred?
• Do you have a stable database in place?
• Is Redis deployed separately with reasonable persistence configurations?
• Are the responsibilities of the main instance and workers clearly defined?
• Is worker concurrency limited?
• Does the AI API have rate limits and cost controls?
• Do Webhooks have timeout and retry strategies?
• Can you view failed tasks and retry records?
• Do you have logging and monitoring set up?
• Is there a rollback plan to Regular Mode?

FAQ

Does n8n Queue Mode strictly require Redis?

Yes, Queue Mode must rely on Redis. n8n uses the Bull engine under the hood for task queue distribution and scheduling, and all of Bull’s core data structures and communication queues are implemented using Redis in-memory storage. Without Redis, Queue Mode simply cannot function.

Should individual developers use Queue Mode from the very beginning?

Not recommended. The early Regular mode deployment is extremely simple and imposes virtually no cognitive overhead. It is advisable to wait until business volume increases and you frequently observe execution backlogs in the backend Execution list, frequent 504 timeouts on external webhooks, or slow AI tasks significantly degrading frontend UI performance before considering an upgrade to Queue Mode with Redis.

Can Queue Mode solve all performance issues?

No. Queue mode only helps offload the event loop pressure from the main execution process, enabling high-throughput task queuing. If your workflow design contains infinite loops, your PostgreSQL database lacks index optimization, external APIs frequently ban you, or LLM interfaces impose strict rate limits, these underlying physical bottlenecks remain. Targeted logic refactoring is required to address them.

Are more workers always better?

No. Increasing the number of workers linearly increases the TCP connection count to Redis and the relational database. Exceeding the physical database’s connection slot limit can cause a cluster-wide cascade failure. Additionally, excessive concurrent worker consumption may trigger Rate Limit errors from external LLM APIs. Proper concurrency control limits must be configured.

Why do AI workflows need queues even more?

Because LLM API call latencies exhibit high volatility, and individual calls are costly and strictly rate-limited. Queues allow these unstable, high-cost tasks to be consumed safely and at a steady pace in the background, providing robust failure retry protection and ensuring system determinism.
